U2002h USB Power Sensor, 50 MHz to 24 GHz

Product Details

Model NO.:

U2002H

Delivery:

2day

Trademark:

KEYSIGHT

Origin:

China

Supply Ability:

2000pieces/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Product Description

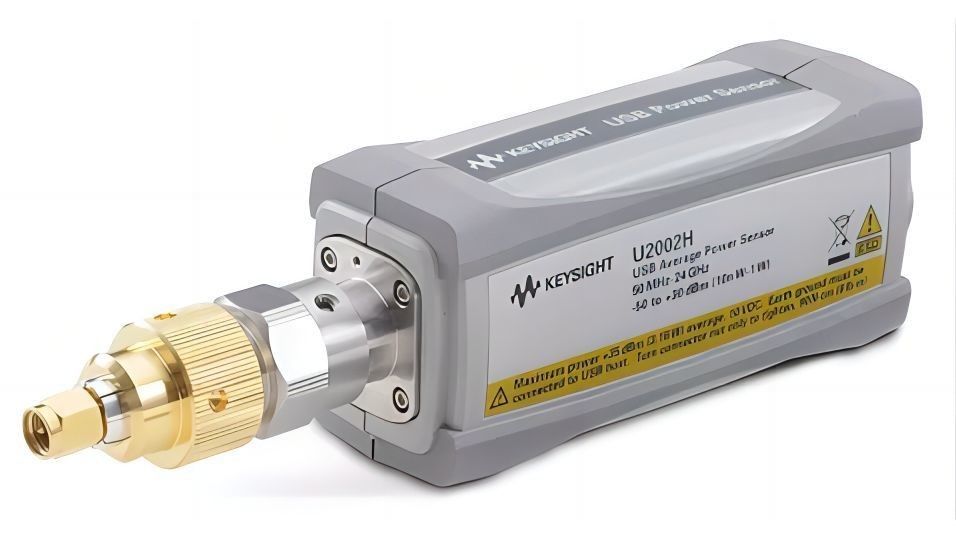

U2002H USB Power Sensor, 50 MHz to 24 GHz
Measure average power over the frequency range 50 MHz to 24 GHz and power range -50 dBm to +30 dBm

Highlights

NEW! Internal triggering and trace display capability

Internal triggering enables triggering based on the burst signal envelope, eliminating the need for an external triggering signal. Trace display provides a graphical view of the signal envelope to assist in gate placement and trigger level setup. All U2000 sensors, except for the U2004A, feature these new capabilities. If you are a current USB sensor user, simply download the U2000 series USB power sensor firmware upgrade free of charge.

Frequency range: 50 MHz to 24 GHz
Wide dynamic range: -50 dBm to +30 dBm
Internal zeroing while connected to the DUT
Fast measurement speed: up to 250 readings/second
Supports internal/external trigger measurements, internal triggering and trace display

Compatible with other Keysight instruments
Your instrument now comes with the BenchVue Basic Power Meter/Sensor Control and Analysis App (BV0007B). The BenchVue software simplifies the process of connecting, controlling instruments, and automating test sequences.
