• 30 MHz video bandwidth
• Single shot real time capture at 100 Msamples/s per second
• Key Measurements: - peak, average, peak-to-average ratio, rise time, fall time and pulse width
• 22 Predefined formats: WiMAX, DME, HSDPA, etc.
• One screen view for pulse measurement analysis: Auto Scale, Auto Gate, Rise/Fall Time, Duty Cycle, etc.
• Internal Zeroing and Calibration while connecting to the DUT
• Your instrument now comes with the BenchVue Basic Power Meter/Sensor Control and Analysis App (BV0007B). The BenchVue software simplifies the process of connecting, controlling instruments, and automating test sequences.

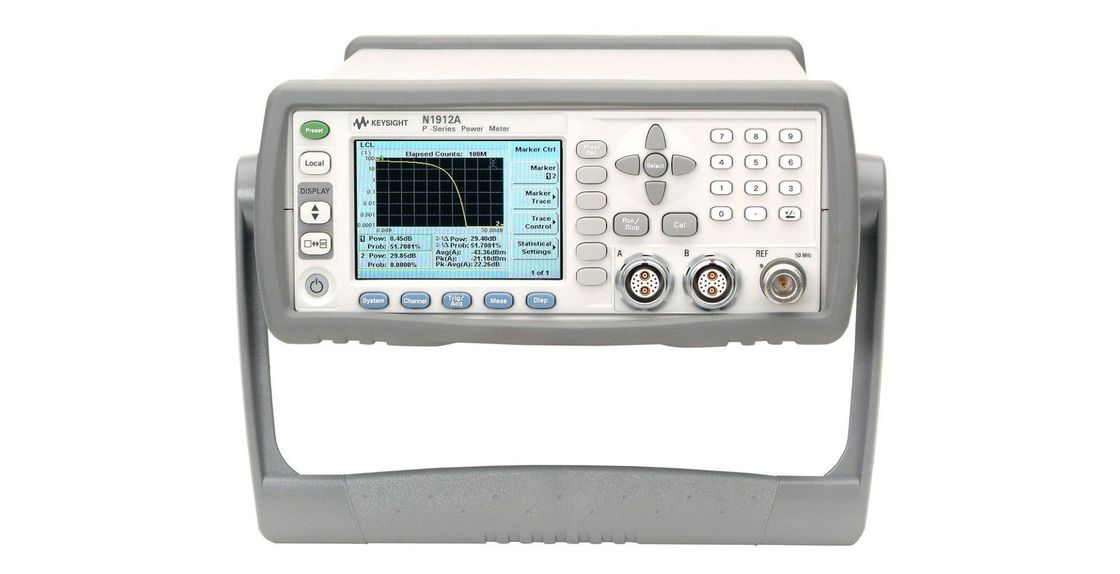

When used with the N192XA wideband power sensors, the N1911/12A P-Series power meter provides a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability.

• LXI-C Compliance
• Average triggering for average power measurement
• Versatile connectivity with USB, LAN and GPIB standard
• High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
• Compatible with the industry standard 8480 and E-series sensors which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz
• Compatibility with E932x power sensors
• Difference and ratio math functions : (A-B, B-A, A/B and B/A)
• 2-year calibration cycle
