E9326A Peak and Average Power Sensor, 50MHz - 18GHz, 1.5MHz Bandwidth

Product Details

Model NO.:

E9326A

Delivery:

2day

Trademark:

KEYSIGHT

Origin:

China

Supply Ability:

2000pieces/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Product Description

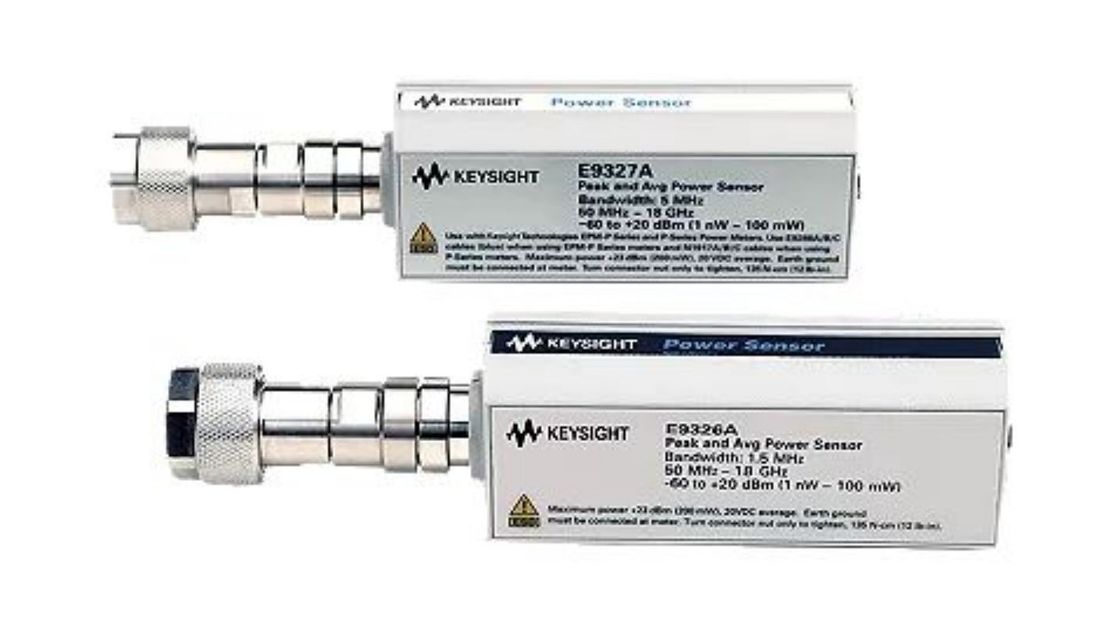

E9326A Peak and Average Power Sensor, 50 MHz - 18 GHz, 1.5MHz Bandwidth
The E9326A power sensor has a 1.5 MHz video bandwidth and is ideal for time-gated peak, average and peak-to-average ratio power measurements on TDMA and CDMA wireless formats such as Bluetooth.

Highlights

1.5 MHz video bandwidth, ideal for Bluetooth® and cdmaOne applications
Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
Wide dynamic range
Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
Precision type-N connector as standard
Operates with the EPM-P (E4416A/ 17A) series and P-Series (N1911A/ 12A) power meters
