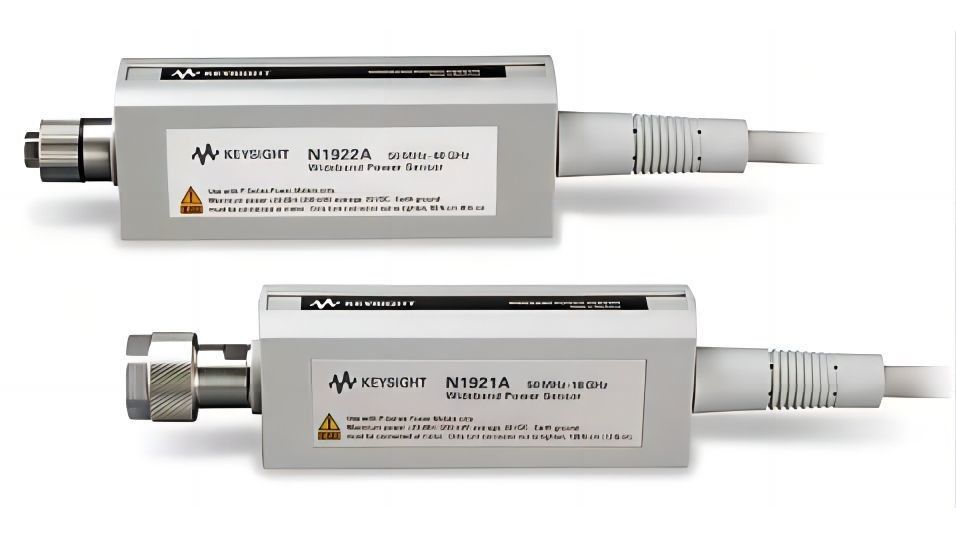

The N192xA wideband power sensors are the first to provide internal zero and calibration by integrating a DC reference source and switching circuits into the power sensor. This feature eliminates multiple connections needed when using an external calibration source, thus minimizing connector wear, test time, and measurement uncertainty.

• Zero and calibrate while connected to the DUT
• -35 dBm to +20 dBm wide dynamic range for peak power measurements
• Calibration factors, linearity, temperature, and bandwidth correction data stored in EEPROM
• Precision 2.4 mm connector as standard
• Sensor cable fixed to sensor. Available cable lengths are 1.5 m (5 ft), 3 m (10 ft), and 10 m (31 ft)
