E9325A Peak and Average Power Sensor, 50MHz - 18GHz, 300kHz Bandwidth

Product Details

Model NO.:

E9325A

Delivery:

2day

Trademark:

KEYSIGHT

Origin:

China

Supply Ability:

2000pieces/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Product Description

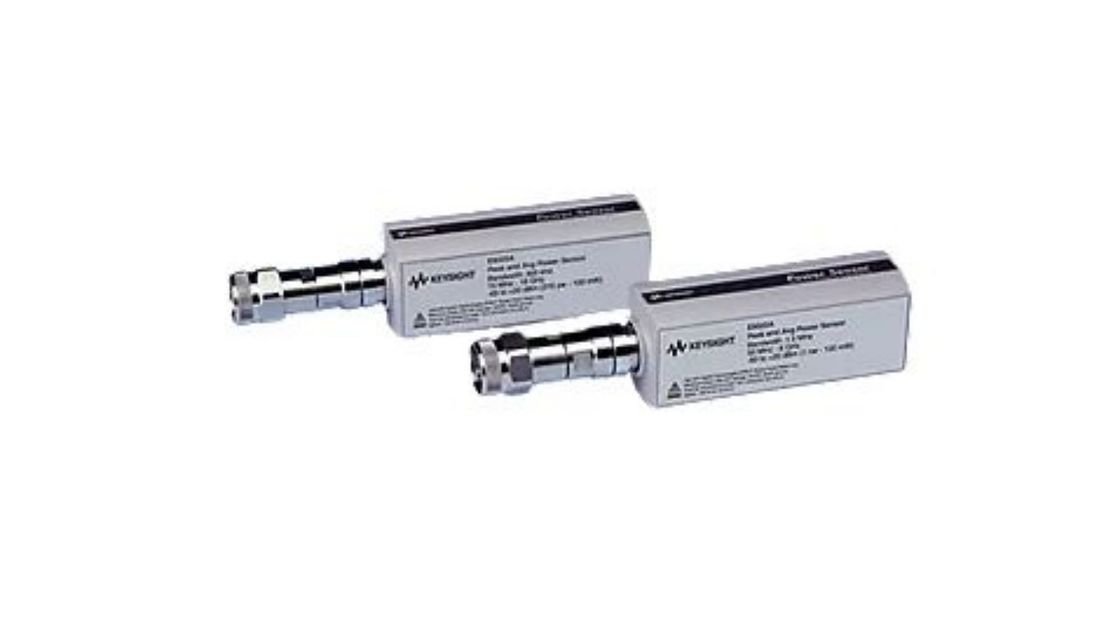

E9325A Peak and Average Power Sensor, 50 MHz - 18 GHz, 300kHz Bandwidth
The E9325A power sensor has a 300 kHz video bandwidth and is ideal for time-gated peak, average and peak-to-average ratio power measurements on TDMA wireless formats such as NADC, GSM and EDGE.

Highlights

300 kHz video bandwidth, ideal for GSM, EDGE and NADC applications
Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
Wide dynamic range
Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
Precision type-N connector as standard
Operates with the EPM-P (E4416A/ 17A) series and P-Series (N1911A/ 12A) power meters
