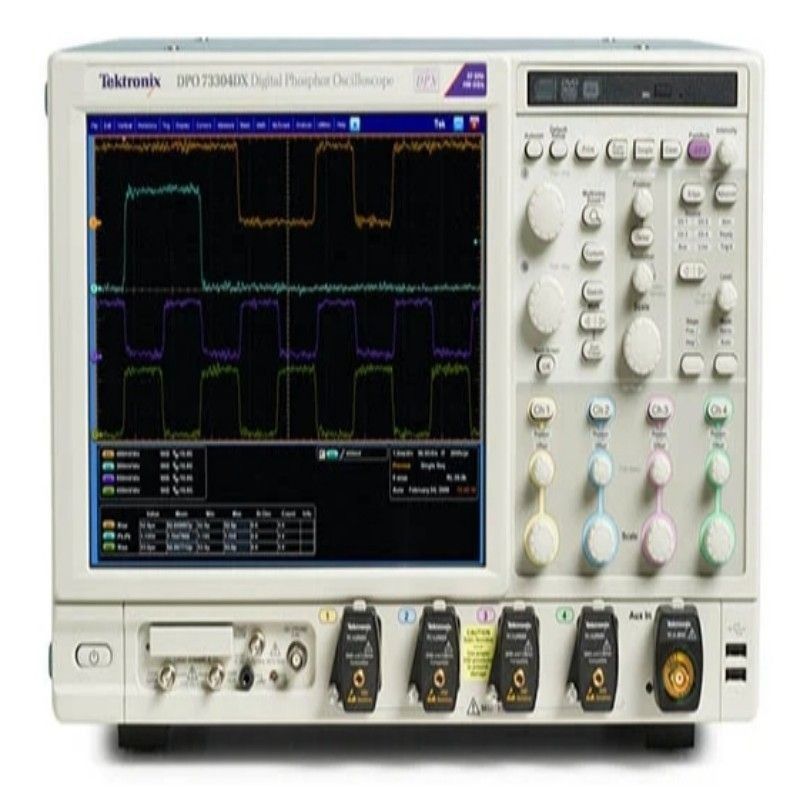

MSO/DPO70000DX Mixed Signal/Digital Phosphor Oscilloscopes with Customization from Tektronix

The MSO/DPO70000DX is one of the most advanced oscilloscopes in its class-enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilize measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000DX is perfect for analog/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000DX for your next project to find and analyze a wide range of mixed-signal anomalies.

Analog/Digital Design and Debug

When you're debugging your next design, you need to quickly find and analyze a wide range of mixed-signal problems, from signal integrity issues like crosstalk or jitter, to bus faults such as setup and hold violations or dropped packets. That's when you need an oscilloscope with powerful tools and reliable performance. You'll keep on schedule when you have an MSO/DPO70000 on your bench.

Highlights

• Easily view analog characteristics of any input and verify system timing with iCapture™ on 4 analog and 16 logic channels
• Analyze system operation on the timescale you need with deep memory on all channels
• Find and fix problems fast with a full suite of triggering, decoding and measurement tools
