N1032b 90/120 GHz Dual Channel Optical Module

Product Details

Model NO.:

N1032B

Channel Number:

Bandwidth:

>1GHz

Deeper Memory Depth:

1.6 G

Sampling Rate:

250 KHz

Delivery:

5week

Noise:

5 Uw

Trademark:

KEYSIGHT

Origin:

China

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Product Description

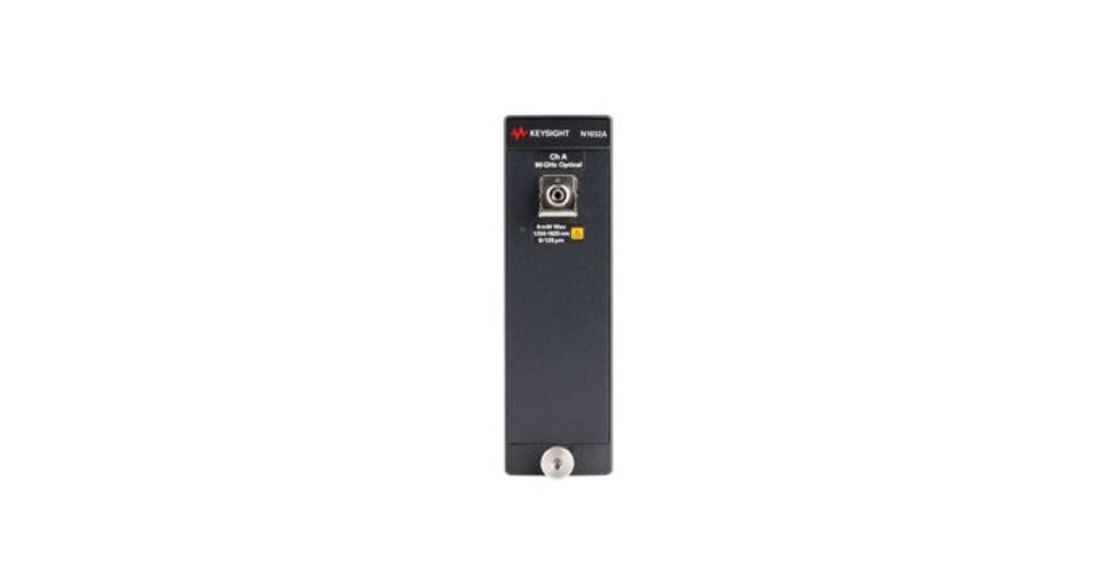

N1032B 90/120 GHz Dual Channel Optical Module

The N1032B is a plug-in module for the DCA-X mainframe that includes two optical channels up to 120 GHz.

Highlights

Two 90 GHz (standard)/120 GHz (optional) optical channel
Jitter as low as 90 fs
Ideal for analyzing 112 GBd (224 Gbps) optical signals or any application that requires ultra-wide optical receiver > 65 GHz bandwidth (-3 dBo)
Impulse response correction (Option IRC) is a standard feature and hardware filters for standards-based rates are optional
Protect your investment: works with both the N1000A (250 kSa/s sampling rate) and 86100D (40 kSa/s sampling rate) mainframes

FLEXDCA SOFTWARE

Keysight's N1010A FlexDCA is the software that runs on the Infiniium DCA Series of sampling oscilloscopes. It controls the measurement hardware both as a local user interface and for remote control. In addition to acquiring data and making measurements, FlexDCA encompasses powerful tools that boost productivity and provide insights into root causes of issues with the signal or device under test.

FlexDCA continues to evolve for applications such as:
research and design verification of electrical transmitters (ASICs, FPGAs, PHYs)
research, development, and manufacturing of optical transmitters/transceivers
analysis of reflections and transmission characteristics of electrical components and channels
general-purpose analysis of analog and digital signals
