N1045b 60 GHz, 2/4 Port, Electrical Remote Sampling Head Module Oscilloscope

Product Details

Model NO.:

N1045B

Channel Number:

Bandwidth:

>1GHz

Delivery:

5week

Trademark:

KEYSIGHT

Origin:

China

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Product Description

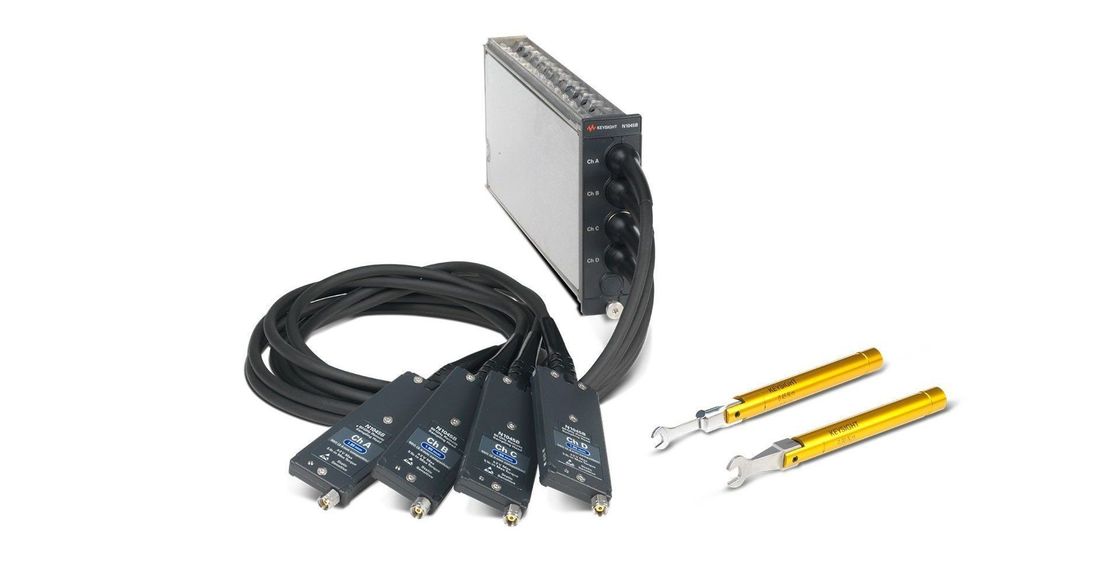

N1045B 60 GHz, 2/4 Port, Electrical Remote Sampling Head Module
The N1045B 60 GHz remote sampling head module is engineered to provide superior measurement accuracy with the highest throughput for testing multi-lane electrical designs.

Highlights

Modular Compatibility For Remote Sampling

The Keysight N1045B electrical port sampling head is a digital communications analyzer (DCA) module that is compatible with the N1000A DCA-X mainframe. Keysight's DCA modules provide a wide range of configurations and performance options to interchange the bandwidth, channel count, and features of your oscilloscope solution.

60 GHz bandwidth (65 GHz typical)
2 or 4 channels per module (user-selectable option)

User-selectable bandwidth settings of 20 / 35 / 45 / 60 GHz
Electrical inputs: 1.85 mm male or female (user-selectable option), sample rate 250 kSa/s

N1010A FlexDCA Sampling Oscilloscope Software

All Keysight DCA-X sampling oscilloscopes use the same N1010A FlexDCA software to control measurement hardware both as a local user interface and for remote control.
runs on DCA mainframes (86100D and N1000A) as well as on external PCs/ laptops
basic measurements are built-in and you can add packages as needed
can be used either standalone using imported or simulated waveforms or connected to a DCA-M or DCA-X
has powerful analysis options for deeper insights into signals and devices
