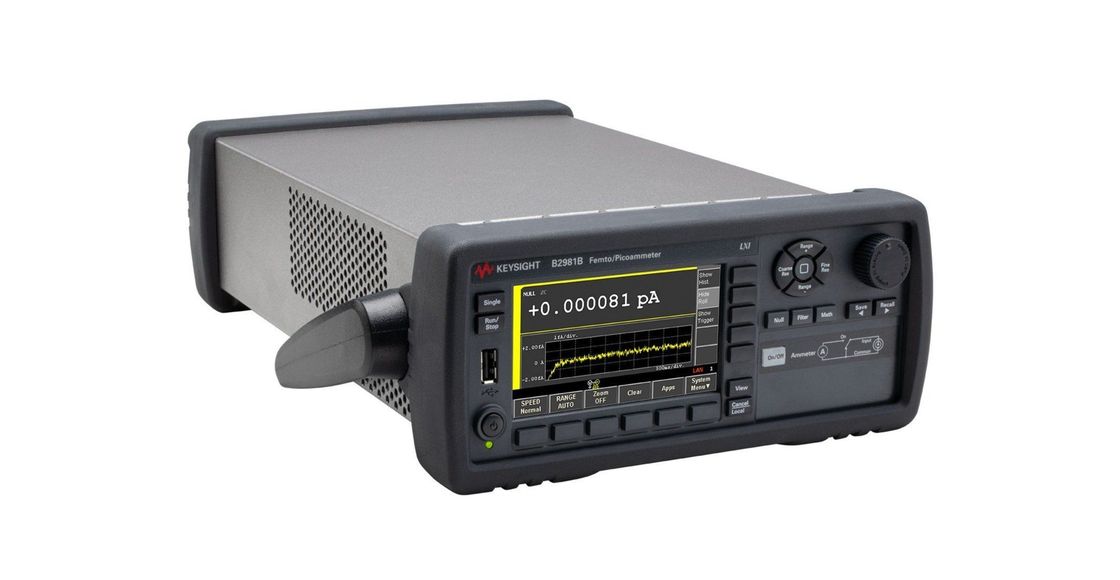

The B2981B Femto/Picoammeter is the world's only graphical picoammeter that allows you to confidently measures small currents with 0.01 fA (0.01 x 10^-15 A) resolution. It possesses a 4.3" color LCD with a graphical user interface that provides trend chart and histogram data in addition to numeric information. These front-panel capabilities enable you to capture transient behavior and perform quick statistical analyses without a PC. The available Setup Integrity Checker software option allows you to compare the noise levels of different cabling and fixturing arrangements to help isolate external noise sources.

Measurement Capabilities

• 0.01 fA minimum measurement resolution
• 20,000 readings/s
• < 20 μV burden voltage

Key Features

• Setup integrity checker software (Option)
• Easy-to-use auto navigation
• Furnished with high-performance Keysight triaxial cable (1.5 m)
