E5055A Ssa-X Signal Source Analyzer, 1 MHz to 8 GHz

Product Details

Model NO.:

E5055A

Delivery:

2day

Trademark:

KEYSIGHT

Origin:

China

Supply Ability:

2000pieces/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Product Description

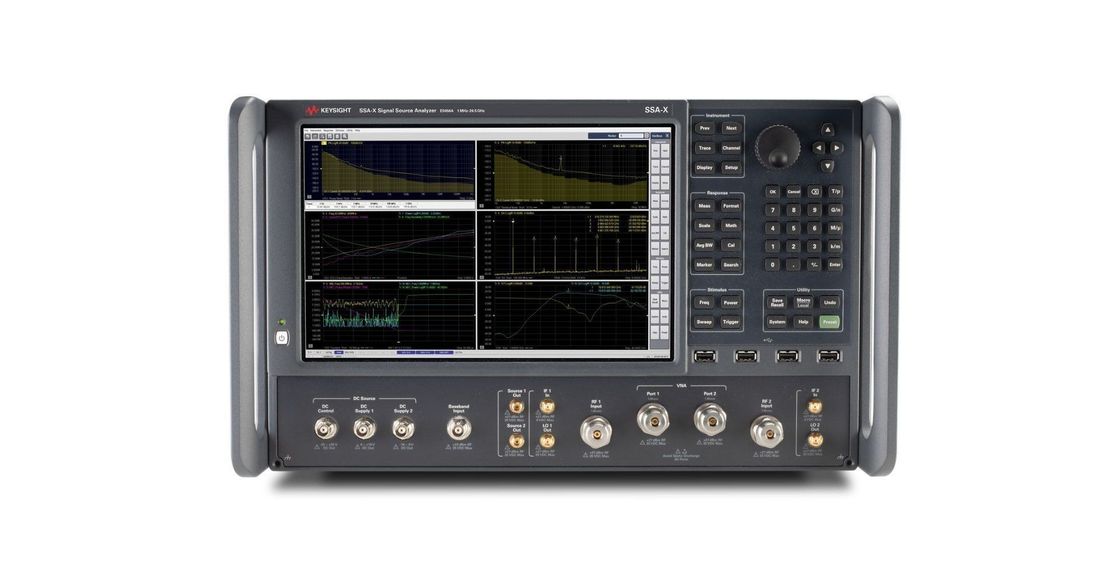

E5055A SSA-X Signal Source Analyzer, 1 MHz to 8 GHz
A high-performance, versatile one-box solution for phase noise and signal source analysis (SSA)

Highlights

The Next Generation of Signal Source Analysis in One-Box

The Keysight E5055A SSA-X signal source analyzer provides precise and accurate measurements in one box. Comprehensive and versatile, this solution evaluates the phase noise and other relevant parameters for RF signals up to 8 GHz. Flexible measurement settings and a modern user interface improve measurement efficiency, while application support through software expands measurement coverage to meet new requirements.

Achieve accuracy and precision in both absolute and residual phase noise measurements with an ultra-low noise sensitivity and cross-correlation method.
Gain accurate and precise residual phase noise measurement is available with the built-in, clean internal signal source and advanced path delay compensation technology.
Evaluate your DUTs from additional and different aspects using the two-port vector network analysis (VNA) option.
Analyze voltage-controlled oscillators (VCOs) with more flexibility by using clean DC voltage (two channels) and tuning voltage outputs.

Improve the evaluation quality and efficiency using the modern multi-window display.
Solve your unique measurement requirements effectively and efficiently by using application software. The new S96302B precision jitter analysis is available for clock / serial / deserializer (SerDes) / phase-locked-loop (PLL) evaluations in high side driver (HSD) applications. The S96302B is compatible with the E5001A SSA-J software.
