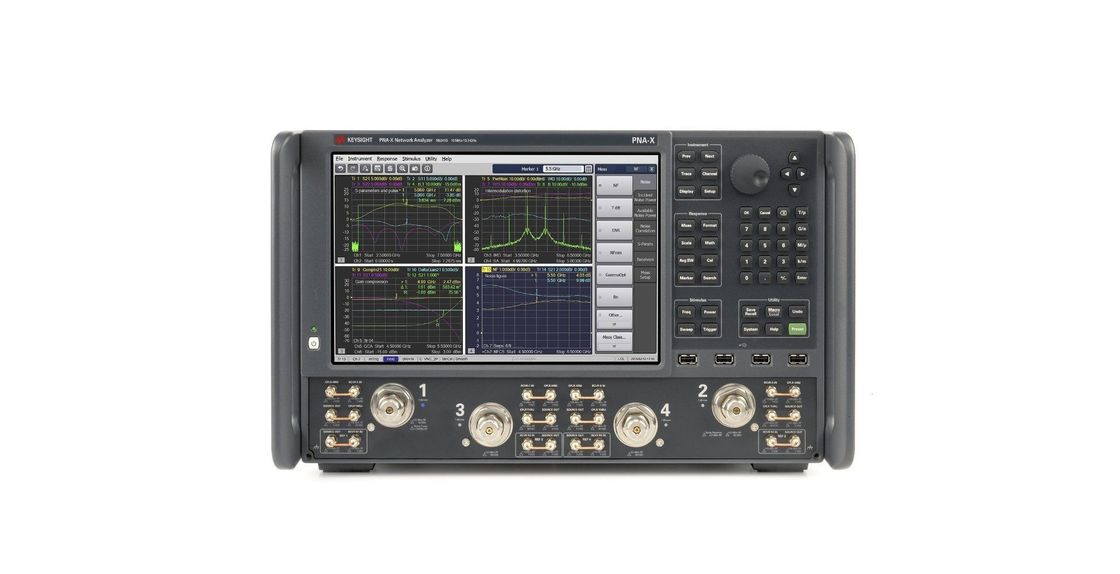

N5225bt Signal Integrity Evaluation up to 50 GHz Analyzer

Product Details

Model NO.:

N5225BT

Delivery:

5week

Trademark:

KEYSIGHT

Origin:

China

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Product Description

N5225BT Signal Integrity Evaluation up to 50 GHz
The N5225BT provides the N5225B 50 GHz PNA, application software including PLTS and Enhanced TDR and accessories for signal integrity evaluation of cables, backplanes, and BGA packages.

HIGHLIGHTS

Use this bundle solution to evaluate the signal integrity of cables, backplanes, PC boards, connectors, BGA packages with physical layer test systems (PLTS), and enhanced time-domain analysis applications.

What's included:

N5225B 50 GHz PNA
S93007B, S93011B, and N19301B / 3B / 5B / 7B applications
N4693D ECal module
four N9910X-714 2.4 mm test cables
