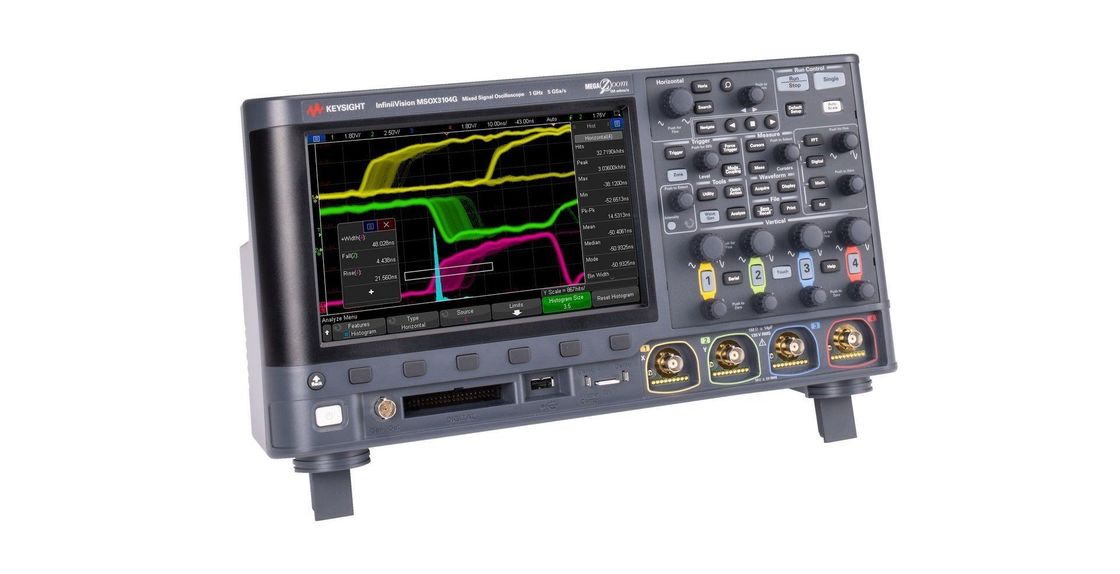

• 350 MHz
• 2 analog plus 16 digital channels
• Easily view signals on the large 12.1-inch capacitive touch screen
• Isolate signals in seconds with exclusive Zone touch triggering
• Capture more data with 4 Mpts memory and standard segmented memory
• See more signal detail with 1,000,000 wfms/s update rate
• Expand your measurement capabilities with full upgradability: Add bandwidth, dual-channel 20 MHz arbitrary waveform generator, 3-digit DVM, serial trigger and analysis, and mask testing at any time

What's included:

• Embedded Software Package (D4000GENB)
• Waveform and measurement histograms
• Dual arbitrary waveform generators
• Frequency response analysis
• KeysightCare technical support
• 3-year warranty (90 days for unserialized accessories such as passive probes)
• Certificate of Calibration, 2-year calibration interval
• One N2894A 700 MHz passive probe (10:1 attenuation) per channel
• One N2756-60001 16-digital-channel MSO cable
• Localized interface, front panel overlay and built-in help system in  English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
• Localized power cord
• Front panel cover
• Documentation CD containing localized user's guide, service guide, and programmer's manual
